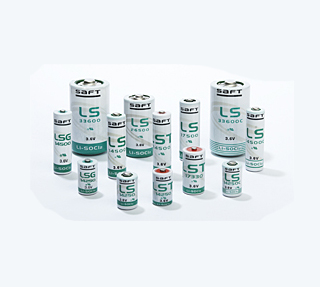

The Saft LS/LST/LSG ranges are cylindrical primary lithium cells, based on the Lithium-Thionyl chloride (Li-SOCl2) chemistry. Their key features are is the concentric electrodes ("bobbin") construction that enables maximum loading of active materials and corresponding energy.
The LS/LST/LSG cells are designed specifically for long-term (3 to 15 years) applications, featuring a few µA base currents and periodic pulses, typically in the 5-150 mA range.
The ‘C’ cell versions are specially recommended for indoor applications (with temperatures generally lower than +30°C) where they demonstrate an excellent resistance to passivation.
The LS cells are manufactured in France, the LSTs in the UK and the LSGs in China. They differ mostly in minor construction, size and finish details.
|
Technical characteristics
|
|
|
- 3.67 V open circuit voltage
- operating voltage (depending on conditions) typically above 3 V
- Underwriters Laboratories (UL) Component Recognition (File number MH 12609)
- compliance with IEC 60086-4 and EN 50020 safety standards
Small LS/LST/LSG bobbin cells
| BATTERY SPECIFICATION |
LS 14250 |
LST 14250 |
LS 14250C |
LSG 14250 |
LS 14500 |
| Size |
½ AA |
½ AA |
½ AA |
½ AA |
AA |
| Open Circuit Voltage |
3.67 V |
3.67 V |
3.67 V |
3.67 V |
3.67 V |
| Nominal Voltage |
3.6 V |
3.6 V |
3.6 V |
3.6 V |
3.6 V |
| Nominal capacity (drain) |
1.2 Ah (1 mA) |
1.2 Ah (1 mA) |
1.2 Ah (1 mA) |
1.2Ah (1 mA) |
2.6 Ah (2 mA) |
| Max. recom. Cont. Current |
35 mA |
35 mA |
15 mA |
20 mA |
70 mA |
| Operating temperature range |
-60/+85°C* |
-60/+85°C* |
-60/+70°C* |
-60/+85°C* |
-60/+85°C* |
| Outside diameter max |
14.65 mm |
14.20 mm |
14.65 mm |
14.2 mm |
14.65 mm |
| Length max |
24.8 mm |
25.15 mm |
24.8 mm |
25.15 mm |
50.3 mm |
| Weight |
8.9 g |
8.8 g |
8.9 g |
8.8 g |
16.7 g |
| Transport |
Non-restricted |
Non-restricted |
Non-restricted |
Non-restricted |
Non-restricted |
|
|
|
|
|
|
| BATTERY SPECIFCATION |
LST 14500 |
LS 14500C |
LSG 14500 |
LST 17330 |
LS 17500 |
| Size |
AA |
AA |
AA |
2/3A |
A |
| Open Circuit Voltage |
3.67 V |
3.67V |
3.67 V |
3.67V |
3.67V |
| Nominal Voltage |
3.6 V |
3.6V |
3.6 V |
3.6V |
3.6V |
| Nominal capacity (drain) |
2.45 Ah (2 mA) |
2.7Ah(2 mA) |
2.45Ah(1 mA) |
2.1Ah(3mA) |
3.6Ah(3 mA) |
| Max. recom. Cont. Current |
70 mA |
25 mA |
45mA |
25 mA |
130 mA |
| Operating temperature range |
-60/+85°C* |
-60/+70°C* |
-60/+85°C* |
-60/+85°C* |
-60/+85°C* |
| Outside diameter max |
14.2 mm |
14.65 mm |
14.2mm |
16.5mm |
17.0mm |
| Length max |
49.85 mm |
50.3mm |
49.85mm |
33.4mm |
50.9mm |
| Weight |
16.3 g |
16.2g |
16.3g |
14.4g |
21.9g |
| Transport |
Non-restricted |
Non-restricted |
Non-restricted |
Non-restricted |
Non-restricted |
* cells leakproof up to 130°C.
Large LS/T bobbin cells
| BATTERY SPECIFICATION |
LS 26500 |
LS 33600 ** |
LS 33600C ** |
| Size |
C |
D |
D |
| Open Circuit Voltage |
3.67 V |
3.67 V |
3.67 V |
| Nominal Voltage |
3.6 V |
3.6 V |
3.6 V |
| Nominal capacity (drain) |
7.7 Ah (4 mA) |
17.0 Ah (5 mA) |
18.5 Ah (1 mA) |
| Max. recom. Cont. Current |
150 mA |
250 mA |
80 mA |
| Operating temperature range |
-60/+85°C* |
-60/+85°C* |
-60/+70°C* |
| Outside diameter max |
26.0 mm |
33.4 mm |
33.4 mm |
| Length(max) |
49.1 to 50.4 mm*** |
60.2 to 61.6 mm*** |
60.2 to 61.6 mm*** |
| Weight |
48 g |
90 g |
90 g |
| Transport |
Restricted (Class 9) |
Restricted (Class 9) |
Restricted (Class 9) |
* cells leakproof up to 120°C.
** Low magnetic cell versions available
*** depending on cell finish.
|
