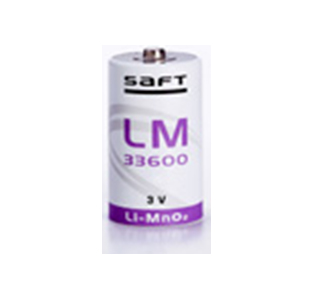

The Saft LM/M cylindrical primary lithium cells are based on lithium-manganese dioxide (Li-MnO2) chemistry.
They feature high surface area spiral electrodes for maximum current pulse capability and electrolyte formula for excellent performance in the cold. They are designed specifically for applications featuring continuous currents in the 0.1-5 A range, with superimposed pulses as high as 5 A.
Saft-branded LM cells are manufactured in the USA.
Friwo-branded M cells are made in Germany.
Technical characteristics
3.2 V open circuit voltage
operating voltage (depending on conditions) typically above 2.5 V
nominal capacities spanning the 0.5 to 10.5 Ah range
compliance with numerous military standards
LM spiral cells
LM 17130
LM 22150
M 52 HR
Size
1/3 A
1/3 sub-C
C
Open Circuit Voltage
3.2 V
3.2 V
3.2 V
Nominal Voltage
3.0 V
2.7 V
3.0 V
Nominal capacity (drain; 2.0 V cut-off)
0.5 Ah (4.5 mA )
0.9 Ah (40 mA)
4.5 Ah (800 mA)
Max. recom. cont.current
0.3 A
0.4 A
1.2 A
Operating temp. range
-40/+70°C
-40/+70°C
-40/+70°C
Outside diameter max
16.7 mm
22.8 mm
26.0 mm
height max
16.6 mm
17.3 mm
51.0 mm
Weight
8 g
15 g
59 g
Transport
Non restricted
Non restricted
Class 9
LM spiral cells
M 20*
M 20 HR*
M 24 HR*
M 62*
Size
D
D
DD
«Big» DD
Open Circuit Voltage
3.2 V
3.2 V
3.2 V
3.2 V
Nominal Voltage
3.0 V
3.0 V
3.0 V
3.0 V
Nominal capacity (drain; 2.0 V cut-off)
10.5 Ah (500 mA)
10.5 Ah (2.0 A)
20.0 Ah (2.0 A)
33.0 Ah (1.6 A)
Max. recom. cont.current
2.0 A
2.5 A
4.0 A
5.0 A
Operating temp. range
-40/+70°C*
-40/+70°C*
-40/+70°C*
-40/+70°C*
Outside diameter max
34.0 mm
34.0 mm
33.5 mm
42.0 mm
Height max
61.0 mm
61.0 mm
111.0 mm
133.0 mm
Weight
115 g
117 g
201 g
355 g
Transport
Class 9
Class 9
Class 9
Class 9
* Friwo cells
