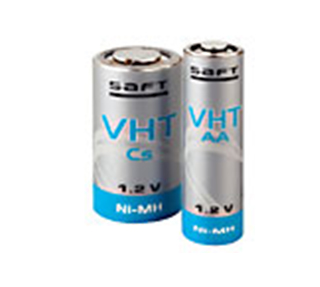

Saft VH/VHT cylindrical Ni-MH cells are designed for telecommunications and other portable
applications that demand fast charge and discharge capability over a prolonged lifetime. The latest VH
Cs, VH D and VH F cells are designed specifically for applications requiring fast charge and high
discharge rates (50 A) and specially target cordless power tools, e-bikes and personal electric vehicles,
radio control and professional electronics equipment.
Technical characteristics
VH AA 1500*
VH AA 1700*
VH Cs 3200 XL
VH D 9500XP
VH F 16000
Size
AA
AA
Cs
D
F
IEC Capacity at 0.2 rate
Typical (mAh)
1500
1700
3200
9500
16000
Minimum (mAh)
1400
1600
3000
9000
15000
Standard charge
Current (mA)
140
160
300
900
1500
Time (h)
16
16
16
16
16
Quick or fast charge
Current (mA)
1400
1600
3000
5000
5000
Time (h)
~1
~1
1-2
2-3
3-4
Internal impedance (mOhm)
20
20
4
4
4
Diameter (mm)
14.0
14.0
22.0
32.2
32.2
Height (mm)
49.2
49.2
42.4
58.6
89.2
Approx weight (g)
26
26
58
168
265
Nominal voltage : 1.2 Volt / cell
VHT AA
VHT Cs
VHT 7/5 Cs
VHT F
Size
AA
Cs
7/5 Cs
F
IEC Capacity at
0.2 rate
Typical (mAh)
11500
2200
4200
11000
Minimum (mAh)
1100
2000
4000
10000
Standard charge
Current (mA)
110
200
400
1000
Time (h)
16
16
16
16
Quick or fast charge
Current (mA)
-
-
-
-
Time (h)
-
-
-
-
Internal impedance (mOhm)
18
5
20
5
Diameter (mm)
14.0
22.0
22.2
32.3
Height (mm)
49.2
48.0
60.0
89.2
Approx weight (g)
24
60
74
215
* Also available with a high top. Diameter is similar. The projection of the top is 1.7 ± 0.2 mm,
the flat
area diameter is 4.0 mm, and the total height of the cell is 49.9±0.3 mm.
Under development
VH Cs 3500
H F 16000 XP
Size
Cs
F
IEC Capacity at 0.2 rate
Typical (mAh)
3500
16000
Minimum (mAh)
3200
15000
Standard charge
Current (mA)
320
1500
Time (h)
16
16
Quick or fast charge
Current (mA)
1500
5000
Time (h)
~ 2-3
~ 3-4
Internal impedance (mOhm)
4
3
Diameter (mm)
22.0
32.3
Height (mm)
42.3
89.2
Approx weight (g)
59
265
Note: Specifications are subject to modification without notice for further improvement.
