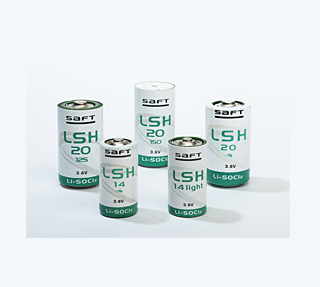

The Saft LSH cylindrical primary lithium cells are based on Lithium-Thionyl chloride (Li-SOCl2) chemistry and feature high surface area spiral electrodes for maximum current capability.
They are designed for applications requiring continuous currents in the 0.1-1.8 A range, with superimposed pulses as high as 4 A.

• 3.67 V open circuit voltage
• Operating voltage (depending on conditions) typically above 3 V
• Underwriters Laboratories (UL) Component  Recognition (File number MH 12609)
• Compliance with IEC 60086-4 and EN 50020 safety standard



BATTERY SPECIFCATION	LSH 26180	LSH 14	LSH 14 "light"	LSH 20	LSH 20HTS	LSH 20-150
Size	1/3 C	C	C	D	D	D
Open Circuit Voltage	3.67 V	3.67 V	3.67 V	3.67 V	3.67 V	3.67 V
Nominal Voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Nominal capacity (drain)	1.2 Ah (10 mA)	5.8 Ah (15 mA)	3.6 Ah (15 mA)	13.0 Ah (15 mA)	12.0 Ah (50 mA)	14.0 Ah (100 mA)
Max. recom. Cont. Current	0.4 A	1.3 A	1.3 A	1.8 A	1.0 A	Consult Saft
Operating temp. range	-60/+85°C *	-60/+85°C *	-60/+85°C *	-60/+85°C *	-60/+120°C	-20/+ 150°C
Outside diameter max	26.2 mm	26.0 mm	26.0 mm	33.4 mm	33.4 mm	32.05 mm
Length (max)	18.6 mm	50.4 mm	50.4 mm	61.6 mm	61.6 mm	61.7 mm
Weight	24 g	51 g	51 g	100 g	100g	100 g
Transport	Non-restricted	Restricted (Class 9)	Non-restricted	Restricted (Class 9)	Restricted (Class 9)	Restricted (Class 9)

Individual cells fitted with non-resettable 5 Amp fuse protection
* cells leakproof up to 120°C.
