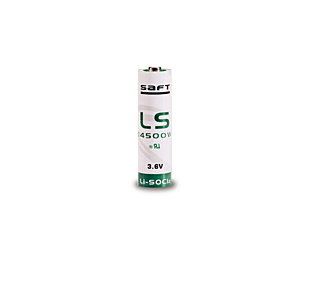

The Saft LS-W cylindrical primary lithium cells are based on Lithium-Thionyl chloride (Li-SOCl2) chemistry. Their key features are the concentric electrode (‘bobbin’ )construction that enables maximum loading of active materials and a specific electrolyte. The LS-W cells are designed specifically for electronic toll collection applications often characterised by widely fluctuating temperatures over short periods of time.
The LS-W cells are made in France and in China.
|
Technical characteristics
|
|
|
- 3.67 V open circuit voltage 3 V
- operating voltage (depending on conditions) typically above 3 V
- Underwriters Laboratories (UL) Component Recognition (File number MH 12609)
- compliance with IEC 60086-4 and EN 50020 safety standards
| BATTERY SPECIFCATION |
LS 14250W |
LS 14500W |
| Size |
½ AA |
AA |
| Open Circuit Voltage |
3.67 V |
3.67 V |
| Nominal Voltage |
3.6 V |
3.6 V |
| Nominal capacity (drain) |
1.2 Ah (1 mA) |
2.2 Ah (1 mA) |
| Max. recom. Cont. Current |
35 mA |
60 mA |
| Operating temp. range |
-60/+95°C* |
-60/+95°C* |
| Outside diameter max |
14.65 mm |
14.65 mm |
| Length max |
24.8 mm |
50.3 mm |
| Weight |
8.9 g |
16.2 g |
| Transport |
Non-restricted |
Non-restricted |
* cells leakproof up to 120°C.
|
