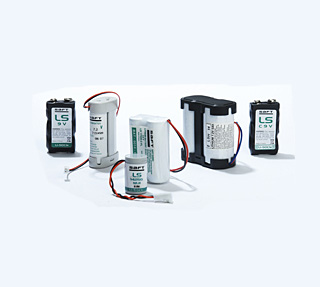

The Saft Li-SOCl2 primary lithium civil battery packs are designed to withstand demanding electrical and mechanical conditions. They may be assembled from LS, LST, LSG, LSX or LSH component cells in series, parallel, or series-parallel combinations, and are available with "soft" (heat-shrink plastic sleeve) enclosures or "hard" (plastic or metal) casings.
Custom designed and standard versions of the packs are available to suit specific applications. Typically, the packs include safety features such as electrical and thermal fuses, PTCs and diodes, as necessary. They can also be fitted with state of charge indicators and SM Bus communication.
|
Technical characteristics:
|
|
|
| BATTERY SPECIFCATION |
LS 14250 MLB |
LS 9V |
Lithopack |
| Cell type construction |
1s1p LS14250 |
3s1p LS 14250 |
2s1p LS 14500 |
| Open Circuit Voltage |
3.67 V |
11.0 V |
7.3 V |
| Nominal Voltage |
3.6 V |
9.0 V |
7.2 V |
| Rated capacity |
1.2 Ah |
1.2 Ah |
2.6 Ah |
| Max. dimensions |
16.8x28.6 mm |
49.1x46.8x26.8 mm |
56.6x31.6x17.3 mm |
| Typical weight |
15 g |
29 g |
34 g |
| Typical applications |
Metering, Professional electronics |
Memory back-up, Metering |
Memory back-up |
* Xs Yp = Y parallel branches of X cells in series per branch
|
