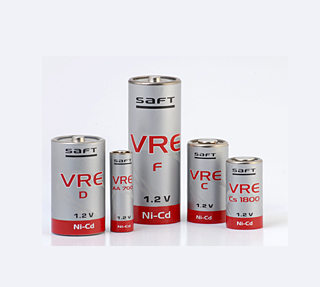

Saft VRE Ni-Cd batteries were designed originally for cycling applications requiring a rapid charge. However, they are also suited to a wide range of general applications where they offer an excellent cost/performance ratio. The high level of reliability provided by Saft’s standard series Ni-Cd batteries is time-tested and well-proven, with hundreds of millions of units delivered over the years
|
Technical characteristics
|
|
|
Nominal voltage : 1.2 Volt / cell
|
|
VRE AA 700
|
VRE Cs
|
VRE Cs 1600
|
VRE Cs 1800
|
VRE C
|
|
Size
|
AA
|
Cs
|
Cs
|
Cs
|
C
|
|
IEC Capacity at 0.2 rate
|
Typical (mAh)
|
780
|
1400
|
1600
|
1800
|
2500
|
|
Minimum (mAh)
|
700
|
1300
|
1500
|
1700
|
2300
|
|
Standard charge
|
Current (mA)
|
70
|
130
|
150
|
170
|
230
|
|
Time (h)
|
16
|
16
|
16
|
16
|
16
|
|
Quick or fast charge
|
Current (mA)
|
700
|
1300
|
1500
|
1700
|
2300
|
|
Time (h)
|
1
|
1
|
1
|
1
|
1
|
|
Internal impedance (mOhm)
|
14
|
6
|
5
|
5
|
5
|
|
Diameter (mm)
|
14.0
|
22.2
|
22.2
|
22.2
|
25.3
|
|
Height (mm)
|
49.2
|
42.4
|
42.2
|
42.2
|
49.5
|
|
Approx weight (g)
|
21
|
43
|
48
|
49
|
75
|
|
|
|
|
|
|
|
|
|
VRE 1/2 D
|
VRE D
|
VRE 5500
|
VRE F
|
|
Size
|
1/2 D
|
D
|
D
|
F
|
|
IEC Capacity at 0.2 rate
|
Typical (mAh)
|
2550
|
5100
|
5500
|
8800
|
|
Minimum (mAh)
|
2400
|
4500
|
5000
|
8000
|
|
Standard charge
|
Current (mA)
|
240
|
450
|
500
|
800
|
|
Time (h)
|
16
|
16
|
16
|
16
|
|
Quick or fast charge
|
Current (mA)
|
800
|
4500
|
5000
|
8000
|
|
Time (h)
|
2~3
|
1
|
1
|
1
|
|
Internal impedance (mOhm)
|
10
|
4
|
4
|
4
|
|
Diameter (mm)
|
32.2
|
32.2
|
32.2
|
32.2
|
|
Height (mm)
|
36.6
|
58.6
|
58.6
|
89.2
|
|
Approx weight (g)
|
80
|
140
|
150
|
220
|
* Also available with a high top. Diameter is similar. The projection of the top is 1.7 ± 0.2 mm, the flat area diameter is 4.0 mm, and the total height of the cell is 49.9±0.3 mm.
Note: Specifications are subject to modification without notice for further improvement |
