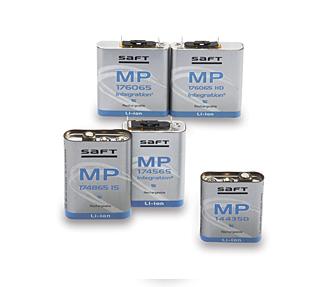

The Saft MP prismatic rechargeable cells are based on lithium-ion chemistry. Besides unrivalled nominal capacities, their most innovative feature, in addition to high nominal capacities and long cycle-life, is their ability to be charged and discharged over a wide temperature range, especially at low temperatures.
The MP cells feature various redundant safety features (electronic protection circuit, built-in circuit breaker in case of faulty chargers, safety valve, shut down separator) which makes them ideal for demanding applications (military, medical, etc.).
The MP series includes the MP 174865 IS cell which is compliant with the intrinsic safety EN 50020 standard, enabling integration into various ATEX-compliant equipment bound to operate in potentially explosive environments.
- Operating voltage typically above 3.5 V
- 4.2 V end of charge voltage
- UL recognized cells
- Some cell and battery pack models are non-restricted for transport
|
Dimensions
|
MP 144350
|
MP 174565 Integration
|
MP 174865
|
MP 174865 IS
|
|
Thickness (1)
|
14.5 mm max.
|
19.5 mm max.
|
19 mm max.
|
19 mm max.
|
|
Width
|
43 mm max.
|
45 mm max.
|
48 mm max.
|
48 mm max.
|
|
Height
|
50 mm max.
|
68.35 mm max.
|
65 mm max.
|
65 mm max.
|
|
Typical weight (2)
|
68 grams
|
105 grams
|
124 grams
|
124 grams
|
|
Nominal Voltage (3)
|
3.75 V
|
3.75 V
|
3.75 V
|
3.65 V
|
|
Rated Capacity (4)
|
2.6 Ah
|
5.0 Ah
|
5.3 Ah
|
4.8 Ah
|
|
|
|
Dimensions
|
MP 176065 Integration
|
|
|
Thickness (1)
|
19.2 mm max.
|
|
Width
|
60 mm max.
|
|
Height
|
68.35 mm max
|
|
Typical weight (2)
|
146 grams
|
|
Nominal Voltage (3)
|
3.75 V
|
|
Rated Capacity (4)
|
7.0 Ah
|
|
|
|
(1) 100% charged, uncycled, unsleeved, unlabelled bare cells
(2) unsleeved, unlabelled cells
(3) C/2 current drain, +20°C, at mid-discharge
(4) uncycled cell charged at C/2 rate up to 4.2 V, followed by 1 to 4 hours of rest at +20°C, and discharged at +20°C at a constant rate of C/5, down to 2.5 V
Maximum discharge current
Up to 2C continuous in the 0/+60°C range. Up to C/5 in the -50/0°C range.
Up to 4C in pulse conditions (consult Saft for specific conditions)
The electronic protection circuit within single cell 1s1p batteries limits the discharge current to 5 A maximum.
Charge method
Constant current / Constant voltage (CCCV)
Charging Current
Up to 1 C-rate
Operating temperature ranges
Charge : -20 / +60°C
Discharge : -50 / +60°C
Transport assignment
MP 144350 & MP 174565 Integration Non-restricted as long as the battery pack features no more than 10 component cells
MP 174865 & 176065 Integration Single cell and multi cell batteries are restricted (Class 9 assignment)
MP 174865 IS - Non-restricted (Class T6 assignment)
