The Saft LSX cylindrical primary lithium cells are based on Lithium-Thionyl chloride (Li-SOCl2) chemistry.
They feature coiled electrodes for optimised voltage response under pulses. They are designed specifically for long-term applications featuring few µA base currents and periodic pulses typically in the 20-200 mA range.
Technical characteristics
3.67 V open circuit voltage
operating voltage (depending on conditions) typically above 3 V
underwriters Laboratories (UL) Component Recognition (File number MH 12609)
compliance with IEC 60086-4 and EN 50020 safety standards
BATTERY SPECIFCATION

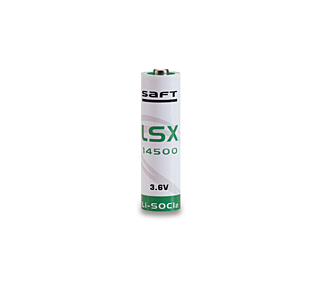

LSX 14500
Size
AA
Open Circuit Voltage
3.67 V
Nominal Voltage
3.6 V
Nominal capacity (drain)
2.1 Ah (1 mA)
Max. recom. cont. current
150 mA
Operating temp. range
-60 / +85°C*
Outside diameter max
14.65 mm
Lenhgt max
50.3 mm
Weight
17.5 g
Transport
Non restricted
* cells leakproof up to 120°C.
